Sinotruk HOWO 18T Water Tank Fire Fighting Truck Low Price China Manufacturer

1. Company Introduction:

• CXFIRE, founded in the year of 1963, is the biggest fire fighting vehicles manufacturer in China. The annual output is 1000 units fire fighting trucks. The main factory is located in Chengdu of China with an area of 200,000 square meters and 600 employees.
• ​CXFIRE exports hundreds of fire trucks every year, and its main markets are Europe, Asia, the Middle East, South America, Africa, etc. Its excellent product quality and perfect after-sales service have won a good reputation.

2. Sinotruk HOWO Industrial Fire Engine with 4750 Gallons Water

3. Superstructure of the Fire Engine
3.1 Cabin

• Structure: Double row cabin with 4 doors.
• Seats: 2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats.

3.2 Standardized Sub-frame

• Material: High-strength rectangular tube made of special steel
• Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.

3.3 Compartment

• Material: High-strength aluminum alloy profiles (Never Rust)
• Structure: Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear.

3.4 Roller Shutter Door

• Material: Aluminum alloy profiles with anodized surface.
• Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.

3.5 Foot Pedals

• Material: High quality aluminum alloy.
• Structure: 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.

3.6 Superstructure Electric Appliance

• Warning Light and Siren: Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
• Strobe Light: Mounted on the both sides of the compartment.
• External Lighting: LED lights are mounted on the both sides of the compartment.
• Roof Lighting: LED lights are mounted on the inside of the roof.
• Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.

3.7 Fire Pump

• Brand: CXFIRE
• Model: CB10/80G
• Flow Rate: 80L/s @ 10bar
• Vacuum Pump: Electric vacuum pump
• Priming Manner: Automatic
• Suction Height: 7m
• Priming Time: ≤60s
• Location: Rear-mounted

3.8 Fire Monitor

• Brand: CXFIRE
• Model: PS60
• Flow Rate: 60L/s @ 10bar
• Shoot Range: Water ≥ 65m
• Location: On the top of the tank
• Control Manner: Manual
• Horizontal Rotation Angle 0°~360°
• Pitch Rotation Angle: -15°~60°

3.9 Liquid Tank

• Capacity: Water 18,000L
• Material: PP composite material and Never Rust.
• Structure: 1 Tank Manhole; 1 Overflow Device/Pressure Relief Device; 1 Liquid Level Indicators;1 Water tank Drain Outlets with Valves.

3.10 Fire Fighting Control System

• Structure: Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level.
• Location: Rear pump room.

Fire Engine with 4750 Gallons Water

Sinotruk HOWO Industrial Fire Engine

33300Kgs Industrial Fire Engine

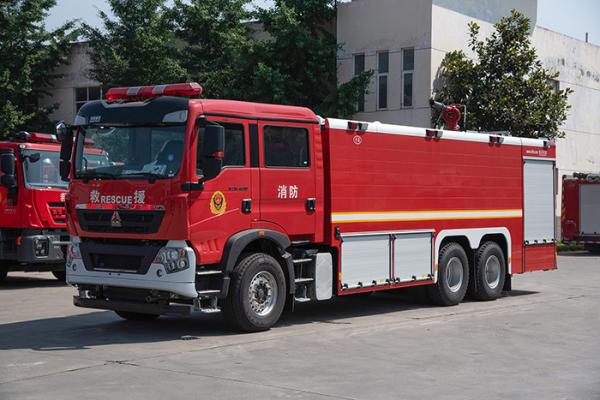

Sinotruk HOWO 18T Water Tank Fire Fighting Truck Low Price China Manufacturer Images
